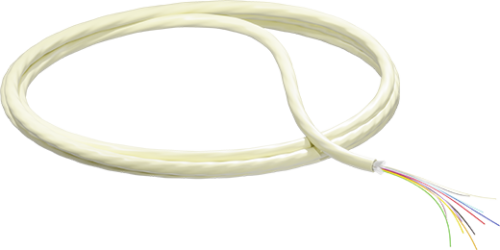

OM2 Multi-mode 50μm Fiber Bundles

These small fiber bundles are designed for installation into the FutureFLEX® Air-Blown Fiber® tube cable infrastructure. Operating wavelengths are 850 and 1300 nm. They can be used in indoor and outdoor applications.

Find a Distributor

Product Downloads

Product Information

Download

Specifications

PropertySpecification
Fiber Bundle Jacket MaterialPolyethylene Extruded Foam (PEF)
Fiber Bundle Jacket ColorWhite
Core Diameter50μm
Cladding Diameter125μm
Buffer / Acrylate Diameter250μm
Maximum Attenuation at 850 / 1300 nm< 3.5 / 1.5 dB/km
Fiber Bandwidth at 850 / 1300 nm≥ 500 / 500 MHz-km
Group Index of Refraction850 nm | 1.483
1300 nm | 1.479
Fiber Bundle Minimum Bend Radius1.5 in

Ordering Information

Part NumberFiber TypeDescriptionOutside Dia. (In. / Mm.)Max Wgt.Std. Lgth. (490 Bobbin)Max Lgth. (600 Bobbin)
FB06M550/125 OM2Multi-mode 6-fiber0.08 / 2.01.314,00040,000
FB12M5S50/125 OM2Multi-mode 12-fiber0.08 / 2.03.47,000 39,400
FB24M550/125 OM2Multi-mode 24-fiber0.12 / 3.03.47,00015,700
FB48M550/125 OM2Multi-mode 48-fiber0.15 / 3.75.66,50010,900

Resources

ABF Fiber Bundle Specification Sheet

OM2 Multimode 50um Fiber Specification Sheet

How-To Videos

See All Videos
Splicing and Assembling MPO Connector on Sumitomo Electric’s Q102-M12 Ribbon Fiber Fusion Splicer
Assembling an ST Splice-On Connector with Sumitomo Electric’s Q102-CA+ Fusion Splicer on Cordage

Part of Sumitomo Electric Lightwave’s How -To video series. This guide provides a thorough introduction to Assembling an ST Splice-On Connector with Sumitomo Electric’s Q102-CA+ Fusion Splicer on Cordage
Splicing Ribbon Fiber on Sumitomo Electric’s Q102-M12 Ribbon Fiber Fusion Splicer
Splicing Fiber with Sumitomo Electric’s Q102-CA+ Fusion Splicer

Part of Sumitomo Electric Lightwave’s How -To video series. This guide provides a thorough introduction to Splicing with Sumitomo Electric’s Q102-CA+ Fusion Splicer

Features

  • Up to 48 Fibers Per Bundle
  • Industry Standard 50 μm Graded-index Multimode Optical Fiber
  • Fibers Individually Color Coded per TIA Standards
  • White Aerodynamic Jacket Allows Long Distance Blows
  • Ripcords for Easy Bundle Entry
  • UL Listed for Use with Fire-Rated Tube Cables
  • Meets ICEA, TIA and UL Standards
  • Meets IEEE 802.3z Gigabit Ethernet Standard
