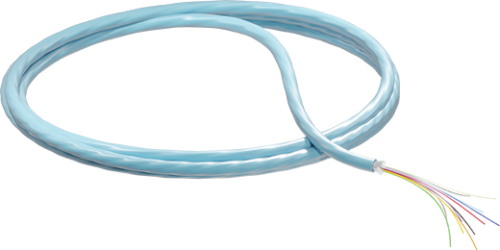

OM1 Multi-mode 62.5 μm Fiber Bundles
These small fiber bundles are designed for installation into the FutureFLEX® Air-Blown Fiber® tube cable infrastructure. Operating wavelengths are 850 and 1300 nm. They can be used in indoor and outdoor installations.
Product Downloads
Specifications
Property | Specification |
---|---|
Fiber Bundle Jacket Material | Polyethylene Extruded Foam (PEF) |
Fiber Bundle Jacket Color | Blue |
Core Diameter | 62.5μm |
Cladding Diameter | 125μm |
Buffer / Acrylate Diameter | 250μm |
Maximum Attenuation at 850 / 1300 nm | < 3.5 / 1.5 dB/km |
Fiber Bandwidth at 850 / 1300 nm | 220 / 600 MHz-km |
Group Index of Refraction | 850 nm | 1.496 1300 nm | 1.491 |
Fiber Bundle Minimum Bend Radius | 1.5 in |
Ordering Information
Part Number | Fiber Type | Description | Outside Dia. (In. / Mm.) | Max Wgt. | Std. Lgth. (490 Bobbin) | Max. Lgth. (600 Bobbin) |
---|---|---|---|---|---|---|
FB06M6 | 62.5/125 OM1 | Multi-mode 6-fiber | 0.08 / 2.0 | 1.3 | 14,000 | 40,000 |
FB12M6S | 62.5/125 OM1 | Multi-mode 12-fiber | 0.08 / 2.0 | 3.4 | 7,000 | 39,400 |
FB24M6 | 62.5/125 OM1 | Multi-mode 24-fiber | 0.12 / 3.0 | 3.4 | 7,000 | 15,700 |
FB48M6 | 62.5/125 OM1 | Multi-mode 48-fiber | 0.15 / 3.7 | 5.6 | 6,500 | 10,900 |
How-To Videos
See All VideosSplicing and Assembling MPO Connector on Sumitomo Electric’s Q102-M12 Ribbon Fiber Fusion Splicer
Assembling an ST Splice-On Connector with Sumitomo Electric’s Q102-CA+ Fusion Splicer on Cordage
Part of Sumitomo Electric Lightwave’s How -To video series. This guide provides a thorough introduction to Assembling an ST Splice-On Connector with Sumitomo Electric’s Q102-CA+ Fusion Splicer on Cordage
Splicing Ribbon Fiber on Sumitomo Electric’s Q102-M12 Ribbon Fiber Fusion Splicer
Splicing Fiber with Sumitomo Electric’s Q102-CA+ Fusion Splicer
Part of Sumitomo Electric Lightwave’s How -To video series. This guide provides a thorough introduction to Splicing with Sumitomo Electric’s Q102-CA+ Fusion Splicer
Features
- Up to 48 Fibers Per Bundle
- Industry Standard 62.5 μm Graded-Index Multimode Optical Fiber
- Fibers Individually Color Coded Per TIA Standards
- Blue Aerodynamic Jacket Allows Long Distance Blows
- Ripcords for Easy Bundle Entry
- UL Listed for Use with Fire-Fated Tube Cables
- Meets ICEA, TIA and UL Standards
- Meets IEEE 802.3z Gigabit Ethernet Standard
