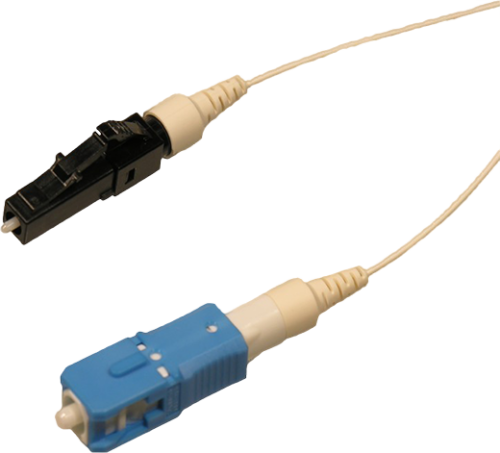

Quick–SC & LC Mechanical Connectors

Quickly enables easy and fast fiber termination in the field. A Sumitomo Electric innovation that has taken mechanical connectors to new heights of dependability, reliability, and performance.

Find a Distributor

Product Downloads

Product Information

Download

Specifications

PropertySMF-UPCSMF-APCMMF OM1MMF OM2MMF OM3/4/5
Polish TypeAPCAPCPCPCPC
Housing ColorBlueGreenBeigeBlackAqua
Typical Insertion Loss0.20 dB0.30 dB0.10 dB0.10 dB0.10 dB
Maximum Insertion Loss≤ 0.50 dB≤ 0.75 dB≤ 0.30 dB≤ 0.30 dB≤ 0.30 dB
Typical Return Loss≥ 50 dB≥ 60 dB*≥ 35 dB≥ 35 dB≥ 5 dB
Minimum Return Loss40 dB50 dB22 dB22 dB22 dB
Operating Temperature-40°C to +70°C (-40°F to +158°F)

Ordering Information

Part NumberDescription
QSC-APCSM-250900QUICK-SC, APC SMF 250/900 µm
QSC-UPCSM-250900Quick-SC, UPC SMF 250/900 μm
QSC-PCMM5-250900Quick-SC, PC MM 50μm, 250/900 μm
QSC-PCMM5OM3-250900Quick-SC, PC MM 50μm OM3/4, 250/900 μm
QSC-PCMM6-250900Quick-SC, PC MM 62.5μm, 250/900 μm
QLC-UPCSM-250900Quick-LC, UPC SMF 250/900 μm
QLC-PCMM5-250900Quick-LC, PC MM 50μm, 250/900 μm
QLC-PCMM5OM3-250900Quick-LC, PC MM 50μm OM3/4, 250/900 μm
QLC-PCMM6-250900Quick-LC, PC MM 62.5μm, 250/900 μm
QSC-LC-HLD-09Quick-SC/LC, 900μm Fiber Holder
QSC-AS231821Quick SC, Assembly JIG Base w/ 900 μm Fiber Holder
QLC-AS231833Quick LC, Assembly JIG Base w/ 900 μm Fiber Holder
QSC-TK-6SPTool Kit for QUICK SC, PC, and UPC Connectors w/ FC-6+ Benchtop Cleaver: Tool Bag, FC-6S+ Cleaver, Fiber Strippers, Fiber Wipes, Fiber Cleaning Fluid, SC Connector Cleaner
QSC-TK-8RTool Kit for QUICK SC, PC, and UPC Connectors, Cabled Fiber w/ FC-8R Handheld Cleaver: Tool Bag, FC-8R-F Cleaver, Fiber Strippers, Fiber Wipes, Fiber Cleaning Fluid, SC Connector Cleaner
QLC-TK-6SPTool Kit for QUICK LC Connectors w/ FC-6+ Benchtop Cleaver: Tool Bag, FC-6S+ Cleaver, Fiber Strippers, Fiber Wipes, Fiber Cleaning Fluid, LC Connector Cleaner
QLC-TK-8RTool Kit for QUICK LC Connectors w/ FC-8R Handheld Cleaver: Tool Bag, FC-8R-F Cleaver, Fiber Strippers, Fiber Wipes, Fiber Cleaning Fluid, LC Connector Cleaner

Features

  • Quick and Skill-free Installation, Without Adhesives or Polishing
  • 1-Minute or Less Low-loss Terminations
  • Eliminates Bulky Mechanical Crimping Tools
  • Improves Mechanical Splicing with Immediate Splice Verification
  • Quick SC and LC Mechanical Connectors are Compatible with Standard SC (IEC 61754-4) and LC (IEC 61754-20) Connectors
  • Visible Inspection – Light Disappears When Installation is Successful
